MS225 – Navigation Light controller
The MS225 Navigation Lights Controller is a key component in our advanced monitoring system, compliant with MSC.253(83) standards. Available in DC and AC models, it supports up to 48 channels, features removable insert cards, automatic backup switching, and manual overrides for robust, flexible control of navigation lights.
Product Certification
Want to know more about the MS225 – Navigation Light controller?
Leave your details and we'll contact you
More about the MS225 – Navigation Light controller
The MS225 is a critical component of our advanced navigation lights control and monitoring system. Designed to work seamlessly with one or more controllers and an intuitive HMI device, it fully complies with MSC.253(83) resolution standards.

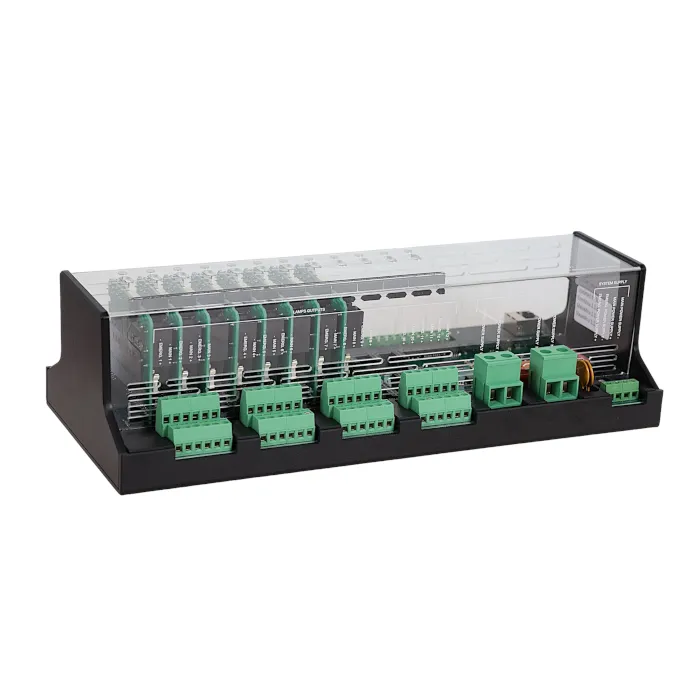

Available in two models, choose the DC version for LED and 24V incandescent lights or the AC version for 115V/230V navigation lights. Each controller manages up to 12 double navigation lights, with every channel featuring a removable insert card for easy maintenance and customization.
For added redundancy, the system automatically switches to backup navigation lights if a main light fails, while a manual switch on each channel ensures complete control. When combined with multiple controllers, the MS225 can support up to 48 channels and provides comprehensive alarming for every channel, guaranteeing prompt and consistent monitoring.
Advantages
- Scalable controller supporting up to 12 double navigation lights per controller, expandable to 48 channels
- Automatic switching ensures continuous operation in case failure
- Removable insert cards simplify maintenance and upgrades
- Manual channel switches offer full control over navigation light operations
- Comprehensive alarming system provides prompt notifications for every channel
- Integration possible with a HMI system
Features
- Supply Voltage: Navigation lights depending on type: 24 V DC / 230 V AC nominal
- Power Supply Controller: 24 V DC
- Power Consumption Controller: 2 Watt
- Serial Connection: Ethernet / RS485 multi-drop Modbus
- Protocol: Modbus TCP/IP / Modbus RTU
- Dimensions: 330x87x132 (WxHxD)
